Descrición:

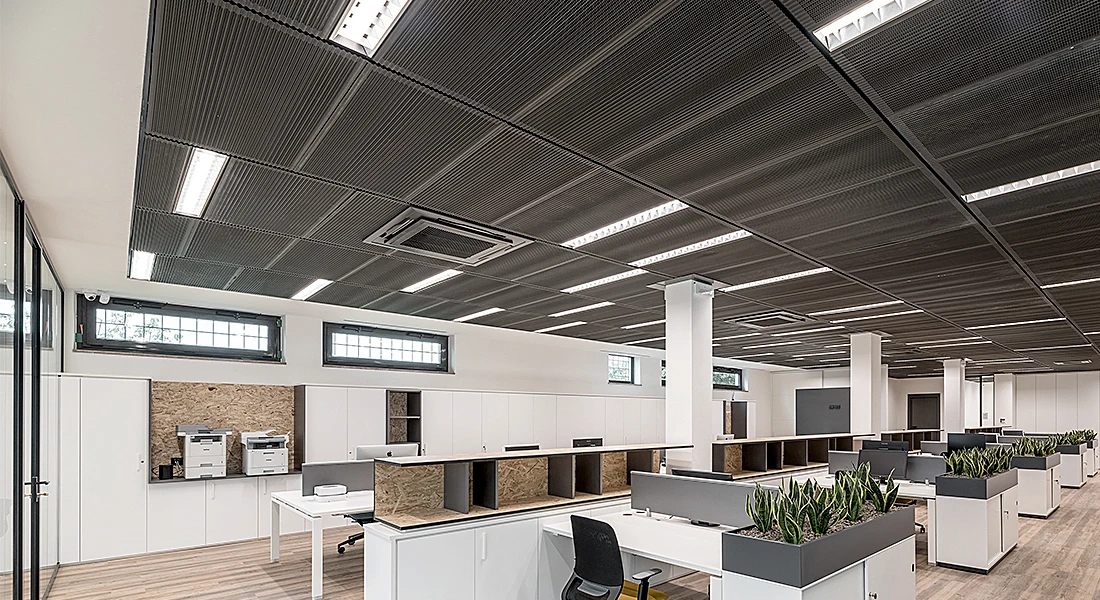

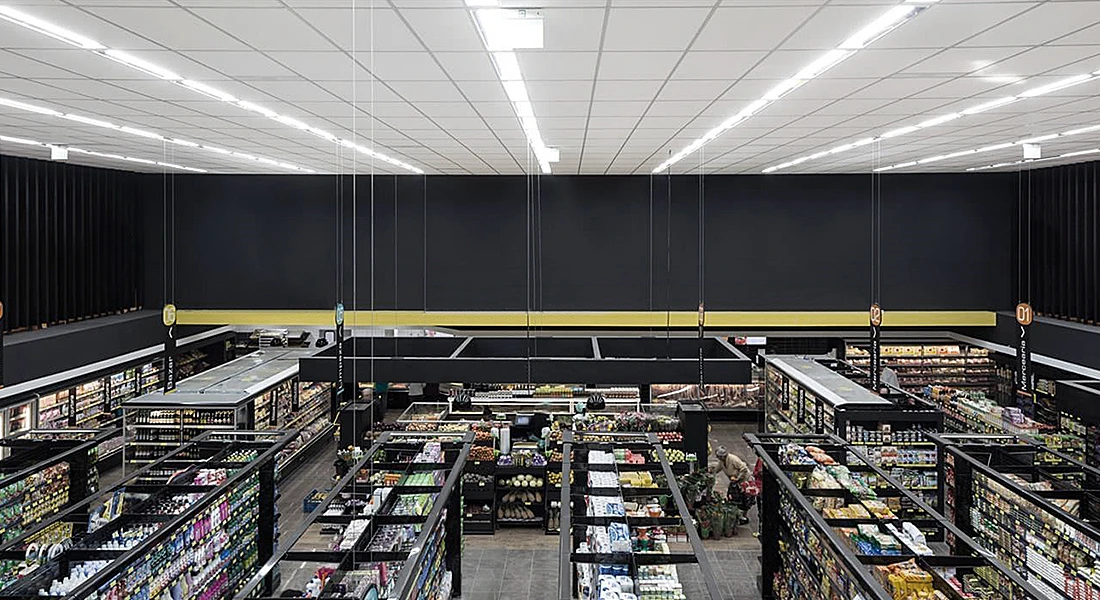

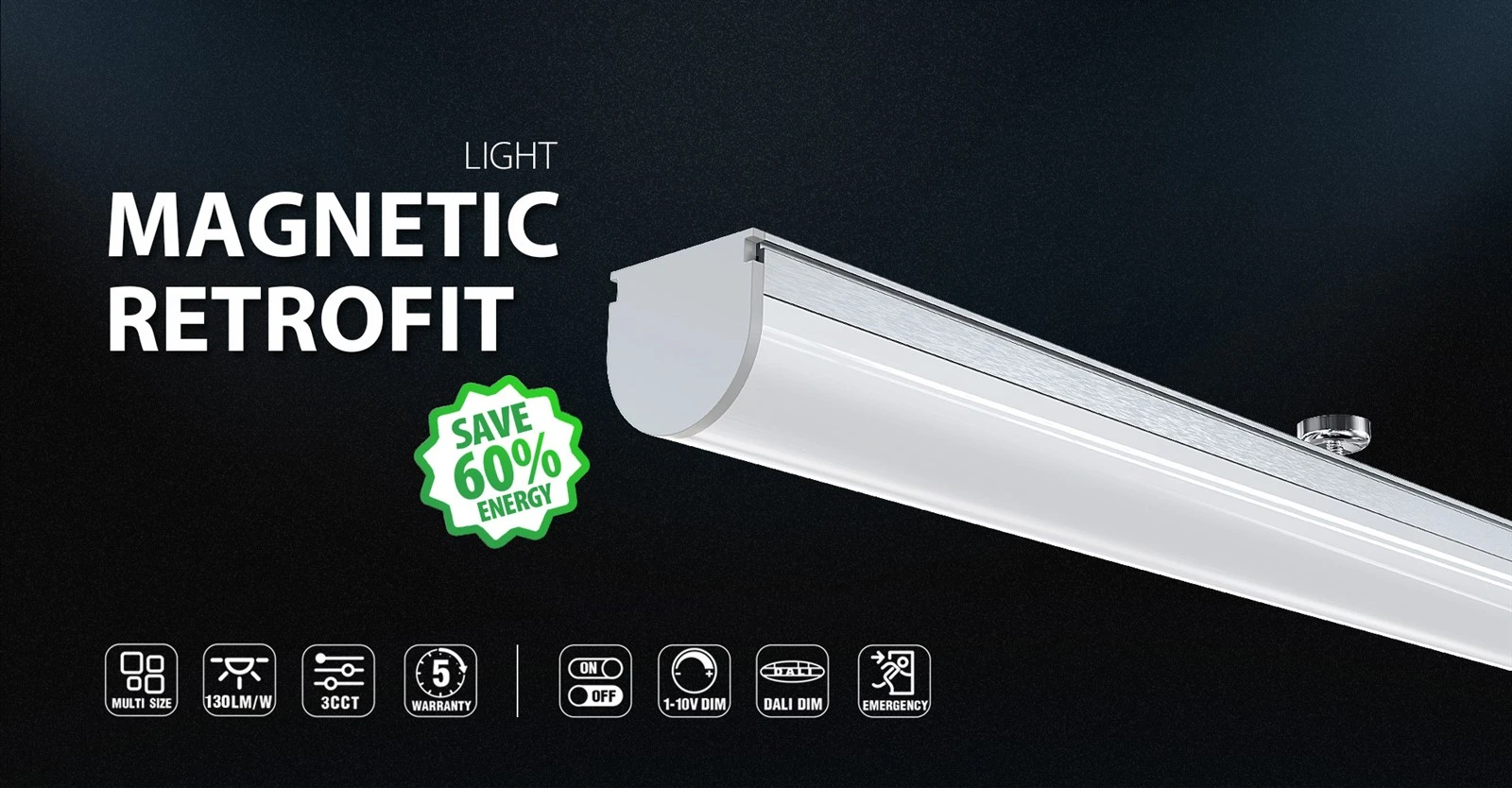

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

Característica:

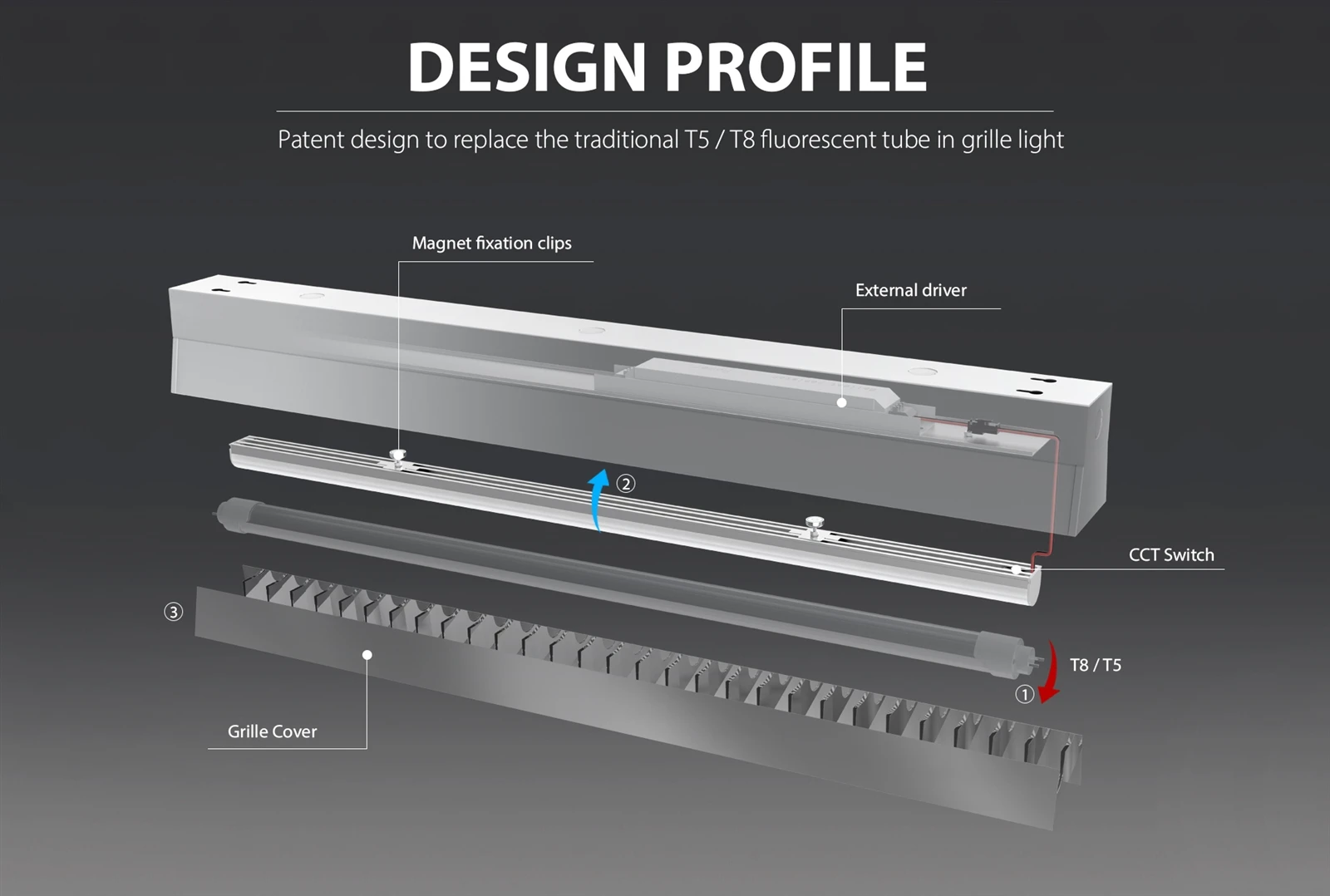

>Deseño de patente para substituír o tubo fluorescente tradicional T5/T8 en troffer

>Potencia e cor (3CCT) Campo-axustable

> Up to 130lm/w@4000lm (Ra>90,R9>50, SDCM<3)

>Magnet Tool-instalación gratuíta, fácil de manter, aforrar custos de traballo

>Un 80% máis de aforro enerxético en comparación coas lámpadas fluorescentes

Send Inquiry

Download

Description

Technical Parameters

INTRODUCIÓN:

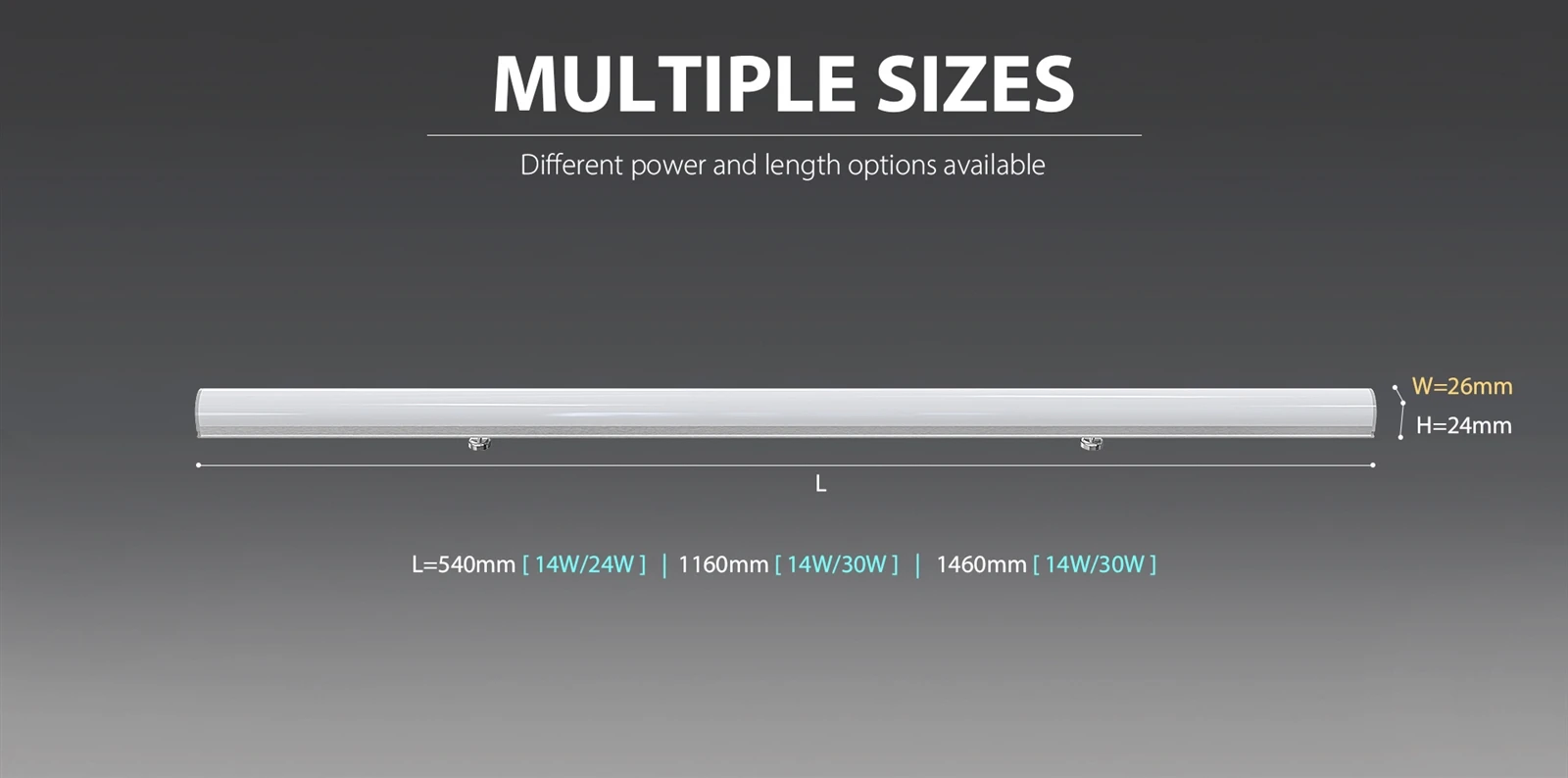

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

Código de pedido	Potencia nominal	LM/W	Lumen	SDCM/Ra	Clase IP	Dimensión do produto	GW/CTN	CANT./CTN
TU100-02N-PT1-24F10-01	14W/24W	Típ.120	tipo.1680/2880	SDCM<3/Ra80,90	IP20	L540xW26xH24	9,91 kg	25 unidades
TU100-04N-AT1-30F10-01	14W/30W	Típ.130	tipo.1820/3900	SDCM<3/Ra80,90	IP20	L1160xW26xH24	14,93 kg	25 unidades
TU100-05N-AT1-30F10-01	14W/30W	Típ.130	tipo.1820/3900	SDCM<3/Ra80,90	IP20	L1460xW26xH24	17,4 kg	25 unidades

Magnetic Retrofit -1

Magnetic Retrofit -2

Magnetic Retrofit -3
